Marchio Cina alta qualità basso costo alta temperatura-pressione Jigger ON Vendita

Acquista il nostro Marchio Cina alta qualità basso costo Jigger ON per alta temperatura e pressione. Siamo una fabbrica con prodotti in vendita.
Richiede una citazione

Dettagli prodotti

Informazioni di Base.

marchio
Wuxi
diametro tamburo principale(mm
245~325
temperatura di esercizio(ºc
140
velocità di funzionamento(m/min)
20~100
gamma di tensione di esercizio (kg/m)
5~80
potenza motore(kw)
3~10
Pacchetto di Trasporto
Standard Export Packing
Specifiche
SGS
Marchio
SY
Origine
Wuxi in Jiangsu Province
Codice SA
8451400000
Capacità di Produzione
1000sets/Year

Descrizione del Prodotto

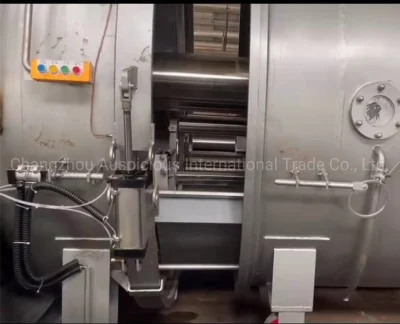

NGR SERIES HIGH TEMPERATURE AND HIGH PRESSURE PUSH TYPE JIGGER
Mainly used for dyeing cotton, acrylic fiber, polyester/cotton, polyester, silk, spandex and other fabrics. Prevent fiber stain to the maximum extent, no heat loss, can save grade source, especially suitable for large wide fabric. The machine is made of domestic high quality low alloy steel plate, high quality stainless steel plate and high quality electrical components, reasonable structure, good performance, safe and reliable operation.
Constant tension
The tension of the fabric can be adjusted at will and maintained uniformly and constant throughout the whole process. Dyeing tension-sensitive fabrics with almost no tension results in outstanding results.
Constant cloth
Working at a constant speed under the control of the program can especially reduce the color difference of the dyed fabric to the minimum and achieve better dyeing effect.

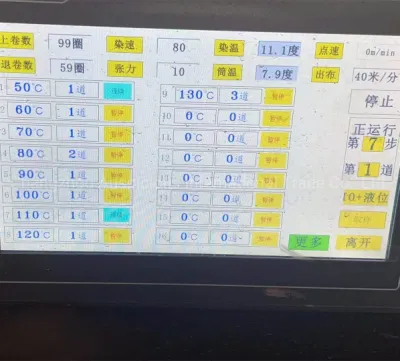

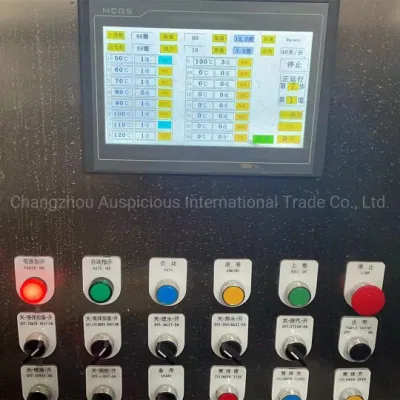

Automation
The whole dyeing process adopts standard automation system to reduce labor cost.
Simple structure
The mechanical structure is simple, easy to repair, general workers can operate.
Main technical parameters
Maximum working diameter (mm) Maximum working width(mm) Main drum diameter(mm) Working temperature(ºC) Bath ratio  Running speed(m/min)  Running tension range  (kg/m) Motor power(kw) Maximum working pressure(Mpa)
800~1200 1800~3200 245~325 140 1:3 20~100 5~80 3~10 2.75×10

China Brand High Quality Low Cost High Temperature-Pressure Jigger on Sale
China Brand High Quality Low Cost High Temperature-Pressure Jigger on Sale
China Brand High Quality Low Cost High Temperature-Pressure Jigger on Sale
China Brand High Quality Low Cost High Temperature-Pressure Jigger on Sale
China Brand High Quality Low Cost High Temperature-Pressure Jigger on Sale
China Brand High Quality Low Cost High Temperature-Pressure Jigger on Sale
China Brand High Quality Low Cost High Temperature-Pressure Jigger on Sale
China Brand High Quality Low Cost High Temperature-Pressure Jigger on Sale
China Brand High Quality Low Cost High Temperature-Pressure Jigger on Sale
China Brand High Quality Low Cost High Temperature-Pressure Jigger on Sale
China Brand High Quality Low Cost High Temperature-Pressure Jigger on Sale
China Brand High Quality Low Cost High Temperature-Pressure Jigger on Sale




Packing Detail Stander export packing(Container)
Delivery Detail Shipment around 30 workdays after the payment
Payment terms  T/T advance will be apprecieted (To be negotiated)
After-sales Service Provide one-to-one service

Any detail information, pls connect us. Thanks!
